Comprehensive Analysis of Magnesium Fluoride

Release time:

2025-02-10

Magnesium fluoride, as a multifunctional inorganic compound, plays an important role in various fields such as optics, electronics, metallurgy, and ceramics due to its unique physicochemical properties. With the continuous development of science and technology, in-depth research on the properties of magnesium fluoride and ongoing improvements in its preparation processes will further expand its application areas and enhance its application value.

1. Introduction

Magnesium Fluoride, as an important inorganic compound, demonstrates unique value in many fields. From the precision manufacturing of optical instruments to key applications in the electronics industry, and to process optimization in traditional industries like metallurgy, magnesium fluoride plays an indispensable role due to its special physical and chemical properties. A deeper understanding of magnesium fluoride helps us better explore its potential and promote technological progress and innovative development in related fields.

2. Basic Information

  1. Chemical Formula: \(MgF_2\), clearly indicating that it is composed of magnesium (Mg) and fluorine (F) in an atomic ratio of 1:2. This atomic combination endows magnesium fluoride with unique chemical properties.
  1. English Name: Magnesium Fluoride, widely used in the international chemical field, facilitates communication and collaboration among researchers and industry practitioners.
  1. Molecular Weight: 62.3018, calculated based on the atomic weight of magnesium (approximately 24.305) and fluorine (approximately 18.998) according to the chemical formula. The molecular weight is significant in studying the physical properties of magnesium fluoride, such as density and melting point.

3. Physical and Chemical Properties

(1) Physical Properties

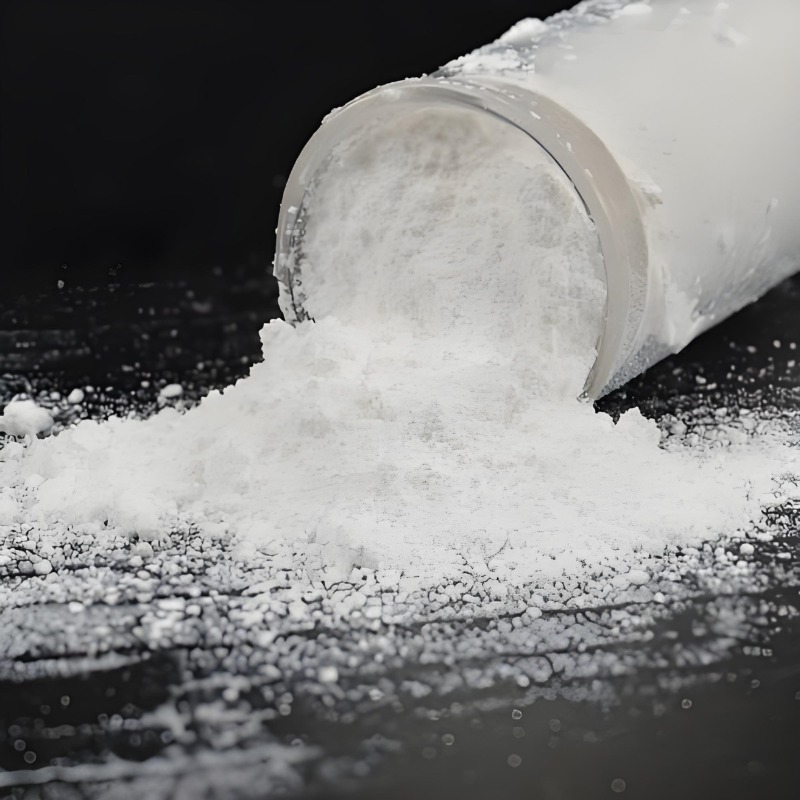

  1. Appearance: At room temperature, it appears as colorless tetragonal crystals or white powder. This appearance characteristic makes it easy to identify and handle in different application scenarios. In the optical field, transparent magnesium fluoride crystals are particularly important; while in some industrial productions, the white powder form of magnesium fluoride is more convenient for storage and transportation.
  1. Melting Point and Boiling Point: The melting point reaches 1261℃, and the boiling point is 2260℃. Such high melting and boiling points indicate that magnesium fluoride has strong crystal structure stability, allowing it to remain solid in high-temperature environments. This characteristic makes it applicable in high-temperature materials and metallurgical auxiliary materials.
  1. Density: The density is 3.148g/cm³, reflecting a relatively high density that indicates the tightness of its atomic arrangement, which is related to its crystal structure and chemical bond characteristics. In material selection and design, density is an important consideration factor, for example, in aerospace and other fields with strict weight requirements, it is necessary to comprehensively consider the balance between the other properties of magnesium fluoride and its density.
  1. Solubility: Slightly soluble in water, at 20℃, only about 0.0076 grams of magnesium fluoride can dissolve in 100 grams of water, and solubility decreases with increasing temperature. It is insoluble in alcohol but can dissolve in nitric acid and can react with hydrofluoric acid to produce hexafluoromagnesium acid (H₂[MgF₆]). This solubility characteristic has important applications in chemical analysis, separation and purification, and some chemical reaction systems.

(2) Chemical Properties

  1. Stability: It has high chemical stability, and under normal temperature and pressure, magnesium fluoride is not easily reacted with other substances. However, under specific conditions such as high temperature and high concentration of acids and bases, its chemical stability may be challenged. For example, at high temperatures, magnesium fluoride may react with certain metal oxides, and this property is used in metallurgy and ceramics industries to adjust the composition and performance of materials.
  1. Optical Properties: Magnesium fluoride has excellent optical transparency, maintaining high transmittance in the ultraviolet, visible, and infrared bands. At the same time, its refractive index is relatively low, between 1.37 - 1.39. These optical characteristics make it an ideal material for optical coatings and optical component manufacturing. The low refractive index reduces reflection of light at the surface of magnesium fluoride films, thereby improving the light efficiency of optical systems; while the wide-band high transmittance ensures good performance of optical components across different wavelength ranges.

4. Preparation Methods

(1) Hydrofluoric Acid Method

  1. Reaction Principle: Using magnesium oxide (MgO) or magnesium carbonate (MgCO₃) as raw materials, a chemical reaction occurs with hydrofluoric acid (HF). Taking magnesium oxide as an example, the chemical equation is \(MgO + 2HF = MgF_2 + H_2O\); when reacting with magnesium carbonate, the chemical equation is \(MgCO_3 + 2HF = MgF_2 + H_2O + CO_2↑\).
  1. Preparation Steps: First, add magnesium oxide or magnesium carbonate raw materials into the reaction vessel, then slowly add hydrofluoric acid, controlling the reaction temperature and stirring speed during the reaction to ensure it proceeds fully. After the reaction is complete, separate the generated magnesium fluoride precipitate from the solution by filtration, then wash the precipitate multiple times to remove impurities, and finally dry to obtain the magnesium fluoride product.
  1. Advantages and Disadvantages: The advantages of this method are its simple reaction principle, relatively wide source of raw materials, and high product purity, which can meet most industrial and research needs. The disadvantages are that hydrofluoric acid is highly corrosive, requiring high standards for equipment, and the production process needs strict safety protection measures, while also generating certain environmental pollution issues that require proper treatment of wastewater and waste gas.

(2) Ammonium Fluoride Method

  1. Reaction Principle: Utilizing ammonium fluoride (NH₄F) to undergo a double decomposition reaction with magnesium sulfate (MgSO₄) or magnesium chloride (MgCl₂) to generate magnesium fluoride precipitate. Taking magnesium sulfate as an example, the reaction equation is \(MgSO_4 + 2NH_4F = MgF_2↓ + (NH_4)_2SO_4\).
  1. Preparation Steps: Prepare ammonium fluoride and magnesium sulfate or magnesium chloride into solutions of certain concentrations, then slowly mix the two solutions under stirring conditions, resulting in the precipitation of magnesium fluoride. The precipitate is separated by centrifugation, washed to remove surface impurity ions, and finally dried at an appropriate temperature to obtain the magnesium fluoride product.
  1. Advantages and DisadvantagesThe advantages are that the reaction conditions are relatively mild, the corrosiveness to equipment is low, and the production process is relatively safe. The disadvantages are that a large amount of by-products, such as ammonium sulfate or ammonium chloride, are generated during the reaction, which requires subsequent treatment, increasing production costs and process complexity.

Other methods

  1. High-temperature solid-phase reaction methodThis method involves directly reacting magnesium powder with fluorine gas or hydrogen fluoride gas at high temperatures to produce magnesium fluoride. The advantage of this method is that the reaction speed is fast, and it can produce high-purity magnesium fluoride. However, the disadvantages are also obvious; fluorine gas is highly toxic and corrosive, making it difficult to operate, with extremely high requirements for equipment and safety protection, resulting in high costs, thus it is rarely used in actual production.
  1. Sol-gel methodThis method prepares magnesium fluoride by forming a sol from organic or inorganic compounds of magnesium with fluorine-containing reagents in solution, followed by gelation, drying, and calcination processes. The advantage of this method is that it can produce uniform particle size and high-purity nanoscale magnesium fluoride powder, suitable for fields with high requirements for material microstructure and performance, such as electronic materials and catalyst carriers. However, its preparation process is complex, costs are high, and yields are low, limiting large-scale industrial production.

Application fields

Optical field

  1. Lens coatingA layer of magnesium fluoride film is coated on the surface of optical lenses such as cameras, telescopes, and microscopes, which can significantly reduce light reflection. This is because the low refractive index of magnesium fluoride matches well with optical materials such as air and glass. According to the principle of light interference, reflected light cancels each other out on the surface of the film, thereby increasing the light transmittance of the lens. For example, a coated camera lens can capture more light, making the photos more vibrant and detailed, reducing glare and ghosting caused by light reflection, and improving imaging quality.
  1. Laser window materialsIn laser equipment, a window material that can efficiently transmit laser and protect the internal equipment is needed. Magnesium fluoride's high transmittance in the ultraviolet and infrared bands makes it an ideal choice. For example, in ultraviolet lasers, magnesium fluoride windows allow ultraviolet lasers to pass through smoothly while preventing external dust, moisture, and other impurities from entering the laser, ensuring stable operation of the laser. In addition, magnesium fluoride also has good thermal stability and mechanical properties, capable of withstanding the heat and mechanical stress generated by lasers, extending the service life of laser equipment.

Electronic industry

  1. Semiconductor manufacturingIn the semiconductor chip manufacturing process, magnesium fluoride can be used as an etching mask material. In the etching process, it is necessary to precisely remove unwanted semiconductor materials while retaining useful parts. Magnesium fluoride has good chemical stability and blocking ability against ion beams, effectively protecting the semiconductor areas that need to be retained during the etching process, ensuring the precision and accuracy of the etching pattern. At the same time, it can also form a protective film on the surface of semiconductor devices, improving their performance and reliability, preventing them from being affected by external environments.
  1. Flat panel displaysIn flat panel display technologies such as liquid crystal displays (LCD) and organic light-emitting diode displays (OLED), magnesium fluoride can be used to prepare buffer layers or protective films for transparent conductive electrodes. In LCDs, the magnesium fluoride buffer layer can improve the interface performance between the transparent conductive electrode and the liquid crystal layer, enhancing electronic transmission efficiency, thereby increasing the brightness and contrast of the display. In OLEDs, the magnesium fluoride protective film can prevent organic light-emitting materials from being eroded by oxygen and moisture, extending the service life of OLEDs, while also improving their light-emitting performance and display effects.

Metallurgical field

  1. FluxIn the metal smelting process, especially in the smelting and casting of metals such as magnesium and aluminum, magnesium fluoride is often used as a flux. It can lower the melting point of metals and improve the fluidity of molten metals. For example, when smelting magnesium alloys, adding an appropriate amount of magnesium fluoride can lower the melting point of the magnesium alloy, facilitating the smelting operation, while improving the fluidity of the magnesium alloy melt, allowing it to better fill the mold cavity during casting, reducing defects in castings and improving the quality and yield of castings. In addition, magnesium fluoride can also help remove impurities and gases from the molten metal, improving the purity of the metal.
  1. Metal surface treatmentMagnesium fluoride can be used in the surface treatment process of metals, forming a magnesium fluoride conversion film on the surface of magnesium alloys. This conversion film can improve the corrosion resistance and wear resistance of magnesium alloys. Magnesium alloys are widely used in aerospace, automotive manufacturing, and other fields due to their low density and high specific strength, but they have poor corrosion resistance. By forming a magnesium fluoride conversion film on the surface of magnesium alloys, a dense protective film can be created to prevent corrosive media such as oxygen and moisture from contacting the magnesium alloy substrate, thereby improving the corrosion resistance of magnesium alloys and extending their service life. At the same time, the magnesium fluoride conversion film can also enhance the hardness and wear resistance of the magnesium alloy surface, improving its performance in friction environments.

Ceramic industry

  1. Improving sintering performanceIn ceramic production, adding magnesium fluoride can lower the sintering temperature of ceramics. The sintering process of ceramics is a complex physical and chemical process that requires high temperatures to promote the densification of ceramic particles. The addition of magnesium fluoride can form a liquid phase at lower temperatures, promoting the diffusion and fusion of ceramic particles, thereby lowering the sintering temperature. This not only saves energy but also reduces the adverse effects of high temperatures on the performance of ceramic materials, such as avoiding mechanical performance degradation caused by grain growth.
  1. Improving mechanical propertiesMagnesium fluoride can improve the mechanical properties of ceramics, such as hardness and toughness. In ceramics, magnesium fluoride can chemically react with other components in the ceramic to form new compounds or solid solutions, thereby altering the microstructure of the ceramic. For example, magnesium fluoride can refine the ceramic grains, making the organizational structure of the ceramic more uniform, thus enhancing the hardness and toughness of the ceramic. At the same time, magnesium fluoride can also enhance the bonding strength between ceramic particles, improving the strength and wear resistance of the ceramic, making it more widely used in structural ceramics and electronic ceramics.

(5) Other Fields

  1. Toothpaste AdditiveMagnesium fluoride has a certain anti-cavity effect, so it is widely used in toothpaste and other oral care products. Its anti-cavity principle mainly lies in the fact that magnesium fluoride can react with the hydroxyapatite on the surface of teeth to form fluorapatite, which is less soluble in acid. Teeth are easily eroded by acidic substances in daily diet, and the formation of fluorapatite can enhance the acid resistance of teeth, reducing the occurrence of cavities. In addition, magnesium fluoride also has good biocompatibility and does not adversely affect oral tissues.
  1. Fluorescent MaterialsMagnesium fluoride can serve as a matrix or auxiliary material for fluorescent materials, combining with other rare earth elements and activators to prepare fluorescent materials with different luminescent properties. These fluorescent materials have important applications in fluorescent displays, fluorescent detection, and biological fluorescence labeling. For example, in fluorescent displays, magnesium fluoride-based fluorescent materials can emit different colors of light for making color displays; in biological fluorescence labeling, magnesium fluoride-based fluorescent materials can label biomolecules for biomedical research and disease diagnosis.

6. Safety Precautions

  1. Toxicity and ProtectionAlthough magnesium fluoride itself has low toxicity, it can release fluoride ions under certain conditions, and excessive intake of fluoride ions is harmful to the human body. Long-term exposure to magnesium fluoride powder may irritate the respiratory system, skin, and eyes. During production and use, operators should wear personal protective equipment such as masks, gloves, and goggles to avoid direct contact with magnesium fluoride.
  1. Environmental ImpactMagnesium fluoride may produce some wastewater and waste gas during the production process, which contains pollutants such as fluorides. If discharged directly without treatment, it can pollute the environment and affect the quality of soil and water bodies. Therefore, production enterprises need to take effective pollution control measures to treat wastewater and waste gas to meet environmental discharge standards.

7. Conclusion

As a multifunctional inorganic compound, magnesium fluoride plays an important role in various fields such as optics, electronics, metallurgy, and ceramics due to its unique physicochemical properties. With the continuous development of science and technology, in-depth research on the properties of magnesium fluoride and ongoing improvements in preparation processes will further expand its application fields and enhance its application value. At the same time, while focusing on its applications, attention must also be paid to safety and environmental issues during its production and use to achieve sustainable development of the magnesium fluoride industry. In the future, magnesium fluoride is expected to show potential application prospects in more emerging fields, such as quantum communication and new energy materials, providing strong support for technological breakthroughs and innovative development in related fields.
